Isolite MPS

20 — 50 Watts

Micro Inverter

Isolite MPS

20 — 50 Watts

The Isolite MPS is a 20 – 55-Watt micro-inverter ideal for powering incandescent, fluorescent, and LED fixtures. The true sinusoidal AC pulse width modulated (PWM) design provides clean 60Hz emergency output. This inverter is equipped with unit capacities up to 20W-55W and has a universal 120/277VAC, 60Hz input/output. The "Soft Start" design reduces fixture inrush current. The inverter allows lumen output from the fixture at 100% nominal and is uniquely designed to eliminate compatibility problems with LED drivers and fluorescent ballasts.


The dual-mode charger's temperature-compensated includes a low voltage disconnect feature to provide protection again battery deep discharge. The inverter is also equipped with a momentary test switch, "on" LED indicators, battery circuit fuse protection, and reverse battery and AC lockout protection.

Standard Features

  • Features

    • For powering incandescent, fluorescent, and LED fixtures
    • True sinusoidal AC pulse width modulated (PWM) design provides clean 60Hz
    • emergency output
    • Universal 120/277VAC, 60Hz input/output
    • Unit capacities up to 20W-55W
    • “Soft Start” design reduces fixture inrush current
    • Surface, recessed, or T-Grid mount models
    • Lumen output from fixture is 100% of nominal
    • UL listed 90 minute run-time
    • Unique design eliminates compatibility problems with LED drivers as well as
    • fluorescent ballasts
    • Normally-ON and/or Normally-OFF load output
    • Provisions for local switching capability — Always-ON during emergency
    • conditions regardless of local switch position
    • Temperature compensated, dual-mode charger includes low voltage disconnect
    • feature to provide protection against battery deep discharge
    • Maintenance-free, Lead-Calcium and premium grade Nickel-Cadmium battery
    • models offered

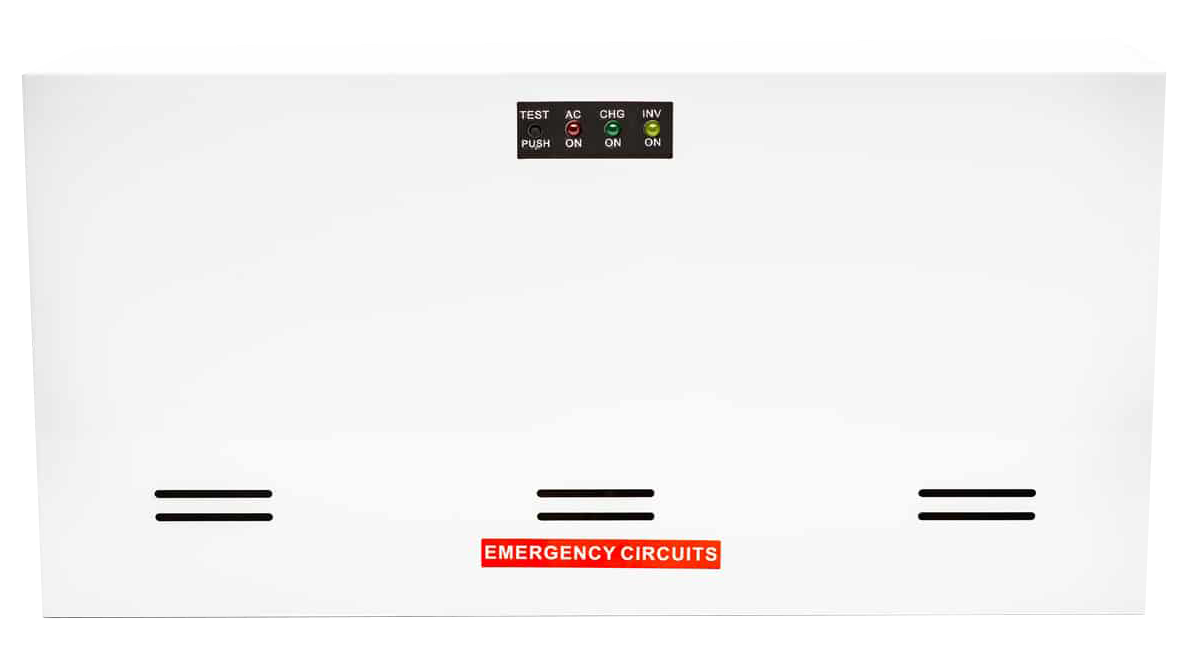

    • Control panel with momentary test switch, AC-ON, Charge-ON, and Inverter-ON
    • LED indicators
    • Battery circuit fuse protected
    • Reverse battery and AC lockout protection

Power Rating: 20-50 Watts

Voltage: 120V, 277V

Product Series: MPS

Input

Input Voltages: 120 or 277VAC ±10%

Input Frequencies: 60Hz ±2%

Input Protection: Provided by Service Panel, Rated 20A max


Output

Output Voltages: 120 or 277VAC (60Hz)

Efficiency Rating: 98% at full rated load (line)

Waveform: Sinusoidal (digitally controlled, PWM design)

Static Voltage: ±5% during battery discharge. 0-100% linear load

Output Frequencies: 60Hz. ±0.3Hz during emergency cycle

Output Distortion: <3% THD (linear load)

Transfer Time: Less than 1.0 second

Load Power Factor Range: 0.44 Lead to 0.44 Lag

Minimum Loading: 0% of rated system capacity

Output Protection: Inverter fuse


Temperature Rating

0° to 50°C for NiCad models

20° to 30°C for lead-calcium model


Safety Standards

UL 924, NFPA 101 Life Safety Code, NEC, OSHA

Download our brochure to learn more.
